Revisions

Last updated: 03-12-2026 by: Dan Maroun

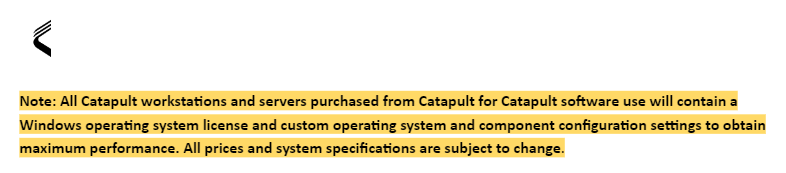

Note: All Catapult workstations and servers purchased from Catapult for Catapult software use will contain a Windows operating system license and custom operating system and component configuration settings to obtain maximum performance. All prices and system specifications are subject to change.

Items Added

Items Removed

• Westy USB Remote with Green Laser, Detachable Cable - [Item # v8522]
• Dell Precision 7680 1TB SSD Laptop - [Item # v1856]
• Dell Precision 7680 1TB Openfield Spec - NA - [Item # v1847] - 2+ Docks

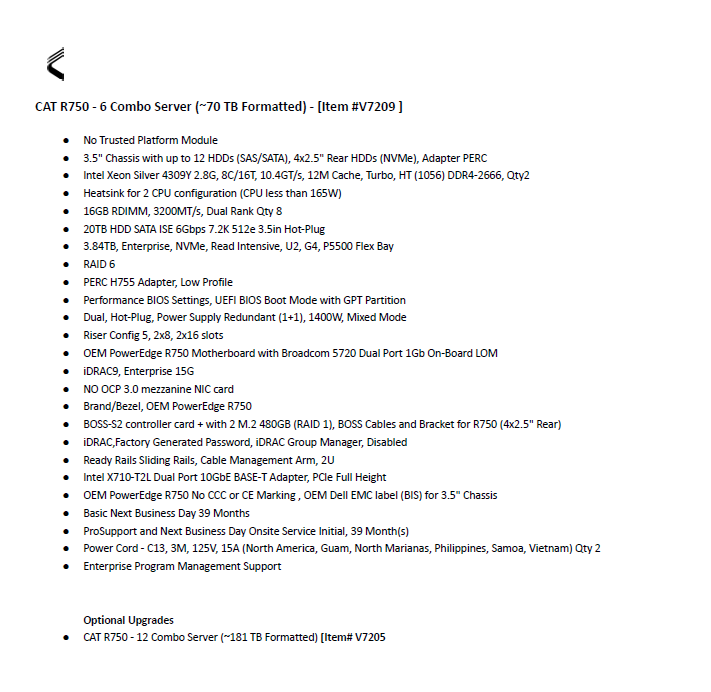

• CAT R750 - 6 Combo Server (2RU - 70 TB Formatted) - [Item #v7209]

Catapult Workstations

Catapult Video Laptop 16 1TB-32GB- [Item # KCVL16-1-32GB-5G]

• Dell Pro Max 16 Plus (MB16250) XCTO Base
• Intel(R) Core(TM) Ultra 9 processor 285HX, 55W vPro
• Windows 11 Pro
• 32GB: 2x16GB 6400 MTs DDR5 CSoDIMM, non-ECC
• Intel(R) Core(TM) Ultra 9 285HX
• NVIDIA RTX PRO 2000 Blackwell 8GB GDDR7
• Intel vPro Enterprise Technology Enabled
• 1TB Performance SSD Gen5, SED Ready
• 16" FHD+ LCD 1920x1200 with 500nits, DCI-P3 100%, VRR 120Hz, Non-touch, WLAN + WWAN, RGB Camera, Mic
• FHD RGB Camera, HDR, TNR4
• English US backlit Copilot key keyboard with numeric keypad
• Intel BE200 WLAN Driver with Bluetooth
• Intel Wi-Fi 7 BE200 Wireless Card
• 6 cell, 96Whr, ExpressCharge(TM) Capable, Long Life Cycle battery, 3-year warranty
• 280W AC adapter, USB Type C
• Palmrest, No Security
• E5 Power Cord 1M for US
• Not ENERGY STAR Qualified
• Intel Core Ultra 9 vPro Processor Label
• BTO Standard Shipment (M)
• English, French, Spanish, Brazilian Portuguese
• Intel Connectivity Performance Suite for Evo/vPro
• Client Program Management Support
• No Additional Hard Drive
• Verizon Promo Referral
• WWAN 5G Qualcomm Snapdragon X72 with E-Esim
• NO RAID
• Intel(R) Rapid Storage Technology Driver
• Custom Configuration
• Dell Pro 16 Plus Standard Bottom Cover
• Basic Onsite Service 36 Months
• ProSupport and Next Business Day Onsite Service Initial, 36 Month(s)

Additional Items Included

• (1) USB Mouse (Black)
• (1) Mousepad

Optional Upgrades

• Catapult Video Laptop 16 2TB-32GB  - [Item # KCVL16-2-32GB-5G]
• Catapult Video Laptop 16 2TB-64GB - [Item # KCVL16-2-64GB-5G] (Contains (2) 1TB SSD’s)
• Catapult Video Laptop 16 4TB-128GB - [Item # KCVL16-4-128GB-5G]
• Dell Pro Thunderbolt 5 Smart Dock SD25TB5 - [Item # 33869A]

Catapult Video Laptop 14 2TB  - [Item # KCVL14-2]

• Dell Pro Max 14
• Intel(R) Core(TM) Ultra 7 265H, vPro(R) Enterprise (24MB, 16 cores, 16 threads, up to 5.30 GHz Turbo, 28W)
• Windows 11 Pro
• Activate Your Microsoft 365 For A 30 Day Trial
• Intel Core Ultra 7 265H Processor with vPro and Intel Integrated Graphics
• English, French, Spanish, Brazilian Portuguese
• Intel vPro Enterprise Technology Enabled
• 32GB: 1x32GB, DDR5, 7500 MT/s, LPCAMM, Dual Channel, non-ECC
• 2TB, M.2 2280, Gen4 PCIe NVMe, SED SSD, Class 40
• 14" FHD+ LCD with 300 nits, Touch, FHD HDR IR Camera, Microphone, WLAN
• FHD+IR Camera, HDR
• English US backlit Copilot key keyboard, 79-key
• Intel AX211 WLAN Driver
• Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth 5.3 wireless card
• 4 cell, 72 Whr
• 100W AC adapter, USB Type C
• Palmrest, No Security
• E5 Power Cord 1M for US
• Quick Setup Guide for Dell Pro Max 14
• Documentation
• ENERGY STAR Qualified
• Dell Pro Max 14
• Packaging for UMA graphic card + 100W adapter
• Intel Core Ultra 7 vPro Processor Label
• EPEAT 2018 Registered (Gold)
• UMA Graphics
• Dell Pro Max 14 Bottom Door
• Intel(R) Connectivity Performance Suite
• Intel(R) Rapid Storage Technology Driver
• Custom Configuration
• Basic Onsite Service 12 Months
• ProSupport and Next Business Day Onsite Service Extension, 24 Month(s)
• ProSupport and Next Business Day Onsite Service Initial, 12 Month(s)

 Additional Items Included

• (1) USB Mouse (Black)
• (1) Mousepad

Optional Upgrades

• Dell Pro Thunderbolt 4 Smart Dock SD25TB4 - [Item # 33771A]

Catapult Video Tablet 13 1TB 5G - [Item # KCVT13-1-5G]

• Latitude 7350 Detachable, XCTO
• Intel(R) Core(TM) Ultra 5 134U (12MB cache, 12 cores, 14 threads, up to 4.4 GHz Max Turbo)
• Windows 11 Pro, English, Brazilian Portuguese PT-BR, French, Spanish
• No Microsoft Office License Included - 30 day Trial Offer Only
• Integrated Intel(R) Graphics, U5-134U processor with 16GB memory and Wi-Fi 7
• 16GB LPDDR5x 6400 MT/s dual-channel (onboard)
• 1 TB, M.2 2230, TLC PCIe Gen 4 NVMe, SSD
• 13" 3K (2880x1920) IPS Touch Anti-Reflect, Anti-Smudge, CGG Victus, LBL, Active Pen Support
• 8MP HDR IR Front Camera with ExpressSign-In, Intelligent Privacy, TNR, Mic + 8MP RGB Rear Camera
• 5G Qualcomm Snapdragon (DW5932e) eSIM, Verizon
• Intel(R) Wi-Fi 7 BE200 MU-MIMO, Bluetooth(R) 5.4 Wireless Card
• Intel(R) BE200 Wi-Fi 7 2x2, Bluetooth(R) 5.4 Technology, Wireless driver
• Intel Core Ultra EVO vPRO Label
• No Security, WWAN
• 65W Type-C Power Adapter
• E4 Power Cord 1M for US
• 46.5 Wh, Long Lifecycle, 3 year limited warranty, 3-cell
• Quick Start Guide
• Intel vPro Advanced Management Enabled
• Dell Additional Software
• ENERGY STAR Qualified
• EPEAT 2018 Registered (Gold)
• No EAN Shipping Box Label
• Mix Model Packaging, for 65W adapter + WLAN + WWAN + without Keyboard
• Custom Configuration
• Intel Connectivity Performance Suite for Evo/vPro
• Intel Rapid Storage Technology Driver
• Basic Onsite Service 12 Months
• ProSupport and Next Business Day Onsite Service Extension, 24 Month(s)
• ProSupport and Next Business Day Onsite Service Initial, 12 Month(s)
• Latitude 7350 Detachable Collaboration Keyboard and Active Pen - US English

Description

• Latitude 7350 Detachable Collaboration Keyboard and Pen - US English



Catapult Video Desktop 1TB - [Item # KCVD-1]

• Dell Pro Max Micro FCM2250 CTO BASE
• Intel Core Ultra 9 285 (36 MB cache, 24 cores, 24 threads, 1.9 GHz to 5.7 GHz, 65W)
• Windows 11 Pro
• 32GB: 2 x 16 GB, DDR5, 5600 MT/s, non-ECC
• 1TB SSD TLC with DRAM M.2 2280 PCIe Gen4 SED Ready
• No Hard Drive
• Intel Integrated Graphics
• Internal Wi-Fi Antenna
• Intel(R) Wi-Fi 6/7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth(R) 5.4 wireless card
• Intel BE200 WLAN Driver
• Intel i226 Network Card Low-Profile
• Compact/Pro Max Desktops Riser Bracket for Graphic Card
• Optional HDMI 2.1 Port
• 280W A/C Adapter, EPEAT5, 7.4MM Barrel, TCO10
• Dell Pro Max Micro Chassis, DAO
• Dell Wired Keyboard - KB216 - US English - Black
• Dell Wired Mouse - MS116
• ENERGY STAR Qualified
• US Power Cord for 280W Adapter
• Documentation
• Watch Dog SRV
• Quick Setup Guide
• US Reese coin battery Package Warning label
• Dell Precision/Pro Max Desktops TPM
• Shipping Material (DAO)
• MPP, single package MOD, DAO
• FSJ Regulatory Label, 280W
• Intel Rapid Storage Technology Driver
• Intel(R) Core(TM) Ultra 9 Processor Label
• Dell Pro Max Micro FCM2250 CTO BASE
• Intel vPro Standard Management
• Custom Configuration
• Internal Speaker
• SSD Thermal Heatsink for single SSD
• NO RAID
• English, French, Spanish, Brazilian Portuguese
• Basic Onsite Service 12 Months
• ProSupport and Next Business Day Onsite Service Extension, 24 Month(s)

• ProSupport and Next Business Day Onsite Service Initial, 12 Month(s)

  Additional Items Included

• (1) USB Mouse (Black)
• (1) Mousepad

Catapult Servers

Catapult Video Transcode Single Rackmount 1RU [Item # KCVTSR]

• Dell Pro Micro Plus QBM1250
• Intel(R) Core(TM) Ultra 7 265 vPro(R) (13 TOPS NPU, 20 cores, up to 5.3GHz)
• Windows 11 Pro
• Activate Your Microsoft 365 For A 30 Day Trial
• 32 GB: 2 x 16 GB, DDR5, up to 5600 MT/s, non-ECC
• 512GB SSD TLC
• NO RAID
• Dell Pro Micro Plus with 65W Processor
• US Power Cord
• Internal WiFi Antenna
• Intel(R) Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth(R) wireless card
• Wireless Driver, Intel(R) Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth(R) wireless card
• Optional 5GbE LAN NIC
• No Keyboard Selected
• No Mouse Selected
• ENERGY STAR Qualified
• Watch Dog SRV
• US/Canada Battery Warning Label
• Trusted Platform Module (Discrete TPM Enabled)
• Regulatory Label for 180W Adapter
• Driver/APP for IRST
• Intel Core Ultra 7 Processor Label
• No Option Included
• 180 Watt A/C Adapter, TCO Compliant
• Internal Speaker
• Custom Configuration
• EPEAT 2018 Registered (Gold)
• No vPro(R) support
• English, French, Spanish, Brazilian Portuguese
• 1st M.2 2230 SSD Extend Bracket & Screw
• Basic Onsite Service 36 Months
• ProSupport and Next Business Day Onsite Service Initial, 36 Month(s)

      Optional Upgrades

• Catapult Video Transcode Dual Rackmount  1RU [Item# KCVTDR]

CAT R760 - 6 Combo Server 128GB (2RU - 87 TB Formatted)  [Item #v7223]

• OEM PowerEdge R760XS XL
• Trusted Platform Module 2.0 V3
• 3.5" Chassis with up to 12 Hard Drives (SAS/SATA) + 2x2.5" Rear NVMe Drives, PERC11
• Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000, OEM XL
• Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000, OEM XL
• Additional Processor Selected
• High Performance Heatsink
• High Performance Heatsink
• Performance Optimized
• 4800MT/s RDIMMs
• PERC H755 Adapter, Low Profile
• Performance BIOS Settings
• UEFI BIOS Boot Mode with GPT Partition
• Very High Performance Fan
• Dual, Redundant(1+1), Hot-Plug Power Supply,1100W MM(100-240Vac) Titanium
• Riser Config 0, No Riser, 3x16 + 1x8 (2 CPU), without OCP
• PowerEdge R760xs Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM
• No OCP 3.0 mezzanine NIC card, Blank Filler Only
• Brand/Bezel, Embedded, OS, OEM PowerEdge R760xs XL
• BOSS-N1 controller card + with 2 M.2 480GB (RAID 1)
• BOSS Cables and Bracket for R760xs
• iDRAC9, Enterprise 16G
• No Quick Sync
• iDRAC,Factory Generated Password, No OMQR
• iDRAC Service Module (ISM), NOT Installed
• iDRAC Group Manager, Disabled
• Cable Management Arm, 2U
• ReadyRails Sliding Rails Without Cable Management Arm
• Basic Next Business Day 39 Months
• ProSupport and Next Business Day Onsite Service Initial, 39 Month(s)
• No Field Deployment
• Infrastructure Deployment Selected
• 16GB RDIMM, 4800MT/s Single Rank  Qty 8
• 24TB Hard Drive SATA ISE 6Gbps 7.2K 512e 3.5in Hot-Plug, AG Drive Qty 6
• 3.84TB Enterprise NVMe Read Intensive AG Drive U.2 Gen4 Flex Bay
• Power Cord - C13, 3M, 125V, 15A (North America, Guam, North Marianas, Philippines, Samoa, Vietnam)
• Intel X710-T2L Dual Port 10GbE BASE-T Adapter, PCIe Low Profile
• Intel E810-XXV Dual Port 10/25GbE SFP28 Adapter, PCIe Low Profile
• Enterprise Program Management Support

Optional Upgrades

• CAT R760 - 12 Combo Server 128GB (2RU - 218 TB Formatted) [Item# v7222]

CAT R760-6 8TB HDD Combo Server 128GB (2RU - 29 TB Formatted) [Item #v7224]

• OEM PowerEdge R760XS XL
• Trusted Platform Module 2.0 V3
• 3.5" Chassis with up to 12 Hard Drives (SAS/SATA) + 2x2.5" Rear NVMe Drives, PERC11
• Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000, OEM XL
• Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000, OEM XL
• Additional Processor Selected
• High Performance Heatsink
• High Performance Heatsink
• Performance Optimized
• 4800MT/s RDIMMs
• PERC H755 Adapter, Low Profile
• Performance BIOS Settings
• UEFI BIOS Boot Mode with GPT Partition
• Very High Performance Fan
• Dual, Redundant(1+1), Hot-Plug Power Supply,1100W MM(100-240Vac) Titanium
• Riser Config 0, No Riser, 3x16 + 1x8 (2 CPU), without OCP
• PowerEdge R760xs Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM
• No OCP 3.0 mezzanine NIC card, Blank Filler Only
• Brand/Bezel, Embedded, OS, OEM PowerEdge R760xs XL
• BOSS-N1 controller card + with 2 M.2 480GB (RAID 1)
• BOSS Cables and Bracket for R760xs
• iDRAC9, Enterprise 16G
• No Quick Sync
• iDRAC,Factory Generated Password, No OMQR
• iDRAC Service Module (ISM), NOT Installed
• iDRAC Group Manager, Disabled
• Cable Management Arm, 2U
• ReadyRails Sliding Rails Without Cable Management Arm
• Basic Next Business Day 39 Months
• ProSupport and Next Business Day Onsite Service Initial, 39 Month(s)
• No Field Deployment
• Infrastructure Deployment Selected
• 16GB RDIMM, 4800MT/s Single Rank  Qty 8
• 8TB Hard Drive SATA ISE 6Gbps 7.2K 512e 3.5in Hot-Plug, AG Drive Qty 6
• 3.84TB Enterprise NVMe Read Intensive AG Drive U.2 Gen4 Flex Bay
• Power Cord - C13, 3M, 125V, 15A (North America, Guam, North Marianas, Philippines, Samoa, Vietnam)
• Intel X710-T2L Dual Port 10GbE BASE-T Adapter, PCIe Low Profile
• Intel E810-XXV Dual Port 10/25GbE SFP28 Adapter, PCIe Low Profile
• Enterprise Program Management Support

Catapult Video Microserver 16 4TB-128GB - [Item # 33867A]

• Dell Pro Max 16 Plus (MB16250) XCTO Base
• Intel(R) Core(TM) Ultra 9 processor 285HX, 55W vPro
• Windows 11 Pro
• 128GB: 1x128GB 6400MTs CAMM2 Dual Channel, non-ECC
• Intel(R) Core(TM) Ultra 9 285HX
• NVIDIA RTX PRO 2000 Blackwell 8GB GDDR7
• Intel vPro Enterprise Technology Enabled
• 2TB Performance SSD Gen5, SED Ready
• 16" FHD+ LCD 1920x1200 with 500nits, DCI-P3 100%, VRR 120Hz, Non-touch, WLAN + WWAN, RGB Camera, Mic
• FHD RGB Camera, HDR, TNR4
• English US backlit Copilot key keyboard with numeric keypad
• Intel BE200 WLAN Driver with Bluetooth
• Intel Wi-Fi 7 BE200 Wireless Card
• 6 cell, 96Whr, ExpressCharge(TM) Capable, Long Life Cycle battery, 3-year warranty
• 280W AC adapter, USB Type C
• Palmrest, No Security
• E5 Power Cord 1M for US
• Quick Setup Guide for Dell Pro Max 16 Plus
• Documentation
• Not ENERGY STAR Qualified
• Dell Pro Max Laptop Packaging
• Intel Core Ultra 9 vPro Processor Label
• BTO Standard Shipment (M)
• English, French, Spanish, Brazilian Portuguese
• Intel Connectivity Performance Suite for Evo/vPro
• Client Program Management Support
• Additional 2TB Performance SSD Gen5 SED Ready
• No Additional Hard Drive
• Verizon Promo Referral
• WWAN 5G Qualcomm Snapdragon X72 with E-Esim
• NO RAID
• Intel(R) Rapid Storage Technology Driver
• Custom Configuration
• Dell Pro 16 Plus Standard Bottom Cover
• Basic Onsite Service 36 Months
• ProSupport and Next Business Day Onsite Service Initial, 36 Month(s)
• Activate Your Microsoft 365 For A 30 Day Trial
• Dell Pro Max 16 Plus MB16250

Standard Multi Sport Bundled Microserver  - [Item # KCVSMS]

• Catapult Video Laptop 16 2TB-64GB  - [Item # KCVL16-2-64GB-5G]
• (1) 36TB LaCie Thunderbolt with USB-3 Adapter included RAID-1 Subsystem (2) 18TB SATA drives
• Sonicwall TZ270 8 Port Router - [Item # v7760]
• Includes SQL 2019 License, (1) Power Squid , (1) 25ft Cat6 Ethernet Cable , (1) USB Mouse and (1) Mouse Pad


Optional Add-Ons For Additional LAN Ports

• 8 Port   - Cisco Catalyst - C1300-8FP-2G (120Watt) - [Item# 33440A]
• 16 Port - Cisco Catalyst - C1300-16FP-2G (240Watt) - [Item# 33441A]
• 24 Port - Cisco Catalyst - C1300-24FP-4G (375Watt) - [Item# 33442A]

Premium Multi Sport Bundled Microserver  - [Item # KCVPMS]

• Catapult Video Microserver 16 4TB-128GB  - [Item # 33867A ]
• (1) 48TB LaCie Thunderbolt with USB-3 Adapter included RAID-1 Subsystem (2) 24TB SATA drives
• Sonicwall NSa2700 16 Port Router - [Item # v7760]
• Includes SQL 2019 License, (1) Power Squid , (1) 25ft Cat6 Ethernet Cable , (1) USB Mouse and (1) Mouse Pad

Optional Add-Ons For Additional LAN Ports

• 8 Port   - Cisco Catalyst - C1300-8FP-2G (120Watt) - [Item# 33440A]
• 16 Port - Cisco Catalyst - C1300-16FP-2G (240Watt) - [Item# 33441A]
• 24 Port - Cisco Catalyst - C1300-24FP-4G (375Watt) - [Item# 33442A]


Catapult Peripheral Only Bundles - No Laptop

Standard Multi Sport Bundled Microserver Peripherals Only - [Item # v4364]

• (1) 36TB LaCie Thunderbolt with USB-3 Adapter included RAID-1 Subsystem (2) 18TB SATA drives
• Sonicwall TZ270 8 Port Router - [Item # v7760]
• (1) Power Squid and (1) 25ft Cat6 Ethernet Cable

Optional Add-Ons For Additional LAN Ports

• 8 Port   - Cisco Catalyst - C1300-8FP-2G (120Watt) - [Item# 33440A]
• 16 Port - Cisco Catalyst - C1300-16FP-2G (240Watt) - [Item# 33441A]

24 Port - Cisco Catalyst - C1300-24FP-4G (375Watt) - [Item# 33442A]


Premium Multi Sport Bundled Microserver Peripherals Only - [Item # v4368]

• (1) 48TB LaCie Thunderbolt with USB-3 Adapter included RAID-1 Subsystem (2) 24TB SATA drives
• Sonicwall NSa2700 16 Port Router - [Item # v7760]
• (1) Power Squid and  (1) 25ft Cat6 Ethernet Cable

Optional Add-Ons For Additional LAN Ports

• 8 Port   - Cisco Catalyst - C1300-8FP-2G (120Watt) - [Item# 33440A]
• 16 Port - Cisco Catalyst - C1300-16FP-2G (240Watt) - [Item# 33441A]
• 24 Port - Cisco Catalyst - C1300-24FP-4G (375Watt) - [Item# 33442A]

Catapult Remotes

Westy USB Remote with Green Laser, 15' cable length - [Item # v8520]

• Wired USB connection
• Can be used with Thunder & Thundercloud WUA applications
• Warranty covered under your annual Maintenance and Support contract

Bolt Bluetooth Remote - [Item # v8500a]

• Wireless Bluetooth connection
• Can be used with Focus, Thunder, Thundercloud WUA & Thundercloud iOS applications
• Warranty NOT covered under your annual Maintenance and Support contract
• Can purchase on Catapult's webstore here: https://us-store.catapultsports.com/products/catapult-bolt-remote

 Westy USB Remote with Green Laser, Detachable Cable - [Item # v8522]

• Detachable USB-B to USB-C 16.5’ Cable
• Can be used with Thunder & Thundercloud WUA applications
• Warranty covered under your annual Maintenance and Support contract (Remote Only)


 Detachable Remote Cable-Only 10ft - [Item # v8522c]

• 10ft USB-B to USB-C Cable Only

Catapult Capture Items

Limit 8 M4 Encoder  - [Item # 33448A]

• The Limit 8 M4 4-Channel HD-SDI Encoder, as configured by Catapult, will allow for multi-channel IP Capture through one device. Video is passed through and encoded via 4 available HD-SDI Inputs

Limit 8 M4 Encoder Rackmount Single  - [Item # K-M4ENC-RM-S]

• The Limit 8 M4 4-Channel HD-SDI Encoder, as configured by Catapult, will allow for multi-channel IP Capture through one device. Video is passed through and encoded via 4 available HD-SDI Inputs. This package includes a custom rackmount kit.

Limit 8 M4 Encoder Rackmount Double  - [Item # K-M4ENC-RM-D]

• The Limit 8 M4 4-Channel HD-SDI Encoder, as configured by Catapult, will allow for multi-channel IP Capture through one device. Video is passed through and encoded via 4 available HD-SDI Inputs. This package includes a custom rackmount kit.

AVMATRIX H.264/H.265 SDI Streaming Encoder - [Item # v6623]

• The AVMatrix H.264/H.265 SDI Streaming Encoder, as configured by Catapult, will allow for IP Capture. Video is passed through and encoded via SDI input.


AVMATRIX H.264/H.265 HDMI Streaming Encoder - [Item # v6622]

• The AVMatrix H.264/H.265 HDMI Streaming Encoder, as configured by Catapult, will allow for IP Capture. Video is passed through and encoded via HDMI input.


ANTRICA 4-CHANNEL HD-SDI Encoder - [Item # ANT-2554]

• The Antrica 4-Channel HD-SDI Encoder, as configured by Catapult, will allow for multi-channel IP Capture through one device. Video is passed through and encoded via 4 available HD-SDI Inputs.

Thunder U/D/C Converter with frame buffer - [Item # 6644]

• The AJA Up Down Cross Converter (UDC), as configured by Catapult, will convert an HD-SDI or SD-SDI signal to HD 720p for compatibility with Thunder Capture HD devices (BM H.264 or ATEM)
• Device includes a frame buffer so in the event of a Video Feed disruption it will continue to send the last frame received until the feed is restored. Allowing Capture to continue uninterrupted
• This device offers 1 SDI output, and an HDMI output, making it easy for a customer to connect the SDI output to the Black Magic H.264 Pro Encoder, while also outputting to a TV via HDMI

Catapult Networking Items

Sonicwall TZ270 8 Port Router - [Item # v7760]

• Firewall Inspection Throughput - 2 Gbps
• Application Inspection Throughput - 1 Gbps
• IPS Throughput - 1 Gbps
• Threat Prevention Throughput - 750 Mbps
• VPN Throughput - 750 Mbps
• Maximum Connections - 750,000
• New Connections/Sec - 6,000
• Ethernet Ports - 8x1GbE
• USB Ports - 2 USB 3.0
• SFP/SFP+ Ports - N/A
• Expansion Slot - Storage up to 256 GB
• Power over Ethernet (PoE) Support - N/A

Optional Add-Ons For Additional LAN Ports

• 8 Port   - Cisco Catalyst - C1300-8FP-2G (120Watt) - [Item# v33440A]
• 16 Port - Cisco Catalyst - C1300-16FP-2G (240Watt) - [Item# 33441A]
• 24 Port - Cisco Catalyst - C1300-24FP-4G (375Watt) - [Item# 33442A]

Sonicwall NSa2700 16 Port Router - [Item # v7764]

• Firewall Inspection Throughput - 5.5 Gbps
• Application Inspection Throughput - 3.6 Gbps
• IPS Throughput - 3.4 Gbps
• Threat Prevention Throughput - 3 Gbps
• VPN Throughput - 2.1 Gbps
• Maximum Connections - 500,000
• New Connections/Sec - 21,500
• Ethernet Ports - 16x1GbE
• USB Ports - 2 USB 3.0
• SFP/SFP+ Ports - 3x10G SFP+
• Expansion Slot - Storage up to 256 GB
• Power over Ethernet (PoE) Support - N/A

Optional Add-Ons For Additional LAN Ports

• 8 Port   - Cisco Catalyst - C1300-8FP-2G (120Watt) - [Item# v33440A]
• 16 Port - Cisco Catalyst - C1300-16FP-2G (240Watt) - [Item# 33441A]
• 24 Port - Cisco Catalyst - C1300-24FP-4G (375Watt) - [Item# 33442A]

Sonicwall NSa 3700 24 Port Router - [Item # v7765]

• Firewall Inspection Throughput - 5.5 Gbps
• Application Inspection Throughput - 4.2 Gbps
• IPS Throughput - 3.8 Gbps
• Threat Prevention Throughput - 3.5 Gbps
• VPN Throughput - 2.2 Gbps
• Maximum Connections - 750,000
• New Connections/Sec - 22,500
• Ethernet Ports - 24x1GbE
• USB Ports - 2 USB 3.0
• SFP/SFP+ Ports - 6x10G SFP+ / 4x5G SFP+
• Expansion Slot - Storage up to 256 GB
• Power over Ethernet (PoE) Support - N/A

Optional Add-Ons For Additional LAN Ports

• 8 Port   - Cisco Catalyst - C1300-8FP-2G (120Watt) - [Item# v33440A]
• 16 Port - Cisco Catalyst - C1300-16FP-2G (240Watt) - [Item# 33441A]
• 24 Port - Cisco Catalyst - C1300-24FP-4G (375Watt) - [Item# 33442A]

Netgear RAXE300 Nighthawk AXE7800 Wireless Tri-Band Gigabit Router - [Item # v8228]

• Wi-Fi 6E (802.11ax)
• 2.4 GHz / 5 GHz / 6 GHz (Tri-Band)
• 4 x Gigabit LAN Ports
• 1 x 2.5G Ethernet Port (Configurable)
• Link Aggregation & VPN Support
• Up to 7800 Mb/s Total Throughput
• 6 x Internal Antennas
• 1 x Gigabit LAN/WAN Port
• 1 x USB 3.1 Gen 1 Type-C Port

Catapult Storage Devices

LaCie 2BIG Dock 36TB  - [Item # v5036]

• Includes USB-C Female to USB-A Adapter

LaCie 2BIG Dock 48TB  - [Item # v5029]

• Includes USB-C Female to USB-A Adapter

16TB SSD USB-C Portable Drive  - [Item # 33772A]

Catapult Travel Cases

Portable Server Travel Case Peripherals - [Item # v7210] - Server Purchased Separately

• Sonicwall TZ270 Router - [Item # v7760]
• SonicWall - Rack Mounting Kit -  [Item # v7763]
• 30" Deep 6U Roto Shock Rack - SKB-R910U30 -  [Item # v3110]
• Interior Width: 19.00 in (48.26 cm)
• Interior Height: 10.50 in (26.67 cm)
• Rackable Depth: 30.00 in (76.20 cm)
• Rack Units Total: 6
• Rail Type: 10/32" Threaded

• Startech 17'' LCD Rack Console - [Item # v3136]

• Middle Atlantic Rack Mount Power Strip -  [Item # v3352]
• Cisco Catalyst - C1300-24FP-4G (375Watt) - [Item# 33442A]
• Travel Case Label Set -  [Item # v3342]
• 3 FT Cat6 Ethernet Patch Cable  - Blue -  [Item # v1985]
• 15 FT Cat6A Ethernet Patch Cable - Orange -  [Item # v1982]
• 6 FT Cat6 Ethernet Patch Cable - Black -  [Item # v1993]
• 3 FT Cat5e Ethernet Patch Cable - Green -  [Item # v1988]

Available Servers Purchased Separately

• CAT R760 - 6 Combo Server 128GB (2RU - 87 TB Formatted)  [Item #v7223]
• CAT R760 - 12 Combo Server (2RU - 218 TB Formatted) [Item# v7222]

Catapult Thunder Hardware Requirements

Please download the link below for the PDF version of this page
