Adjusting the Limit 8 M4 to desired network properties

The Limit 8 M4 comes standard with a static IP of 10.1.1.131. To adjust the IP address, connect your PC directly to the Limit 8 M4 via Ethernet connection and adjust the IP address of your PC network adapter to 10.1.1.100 with a subnet mask of 255.255.255.0.

Once adjusted, you should now be able to access the web user interface of the Limit 8 M4 device by typing the IP address, 10.1.1.131, in a web browser.

Once you access the login page, use the default credentials of admin for the username and admin for the password

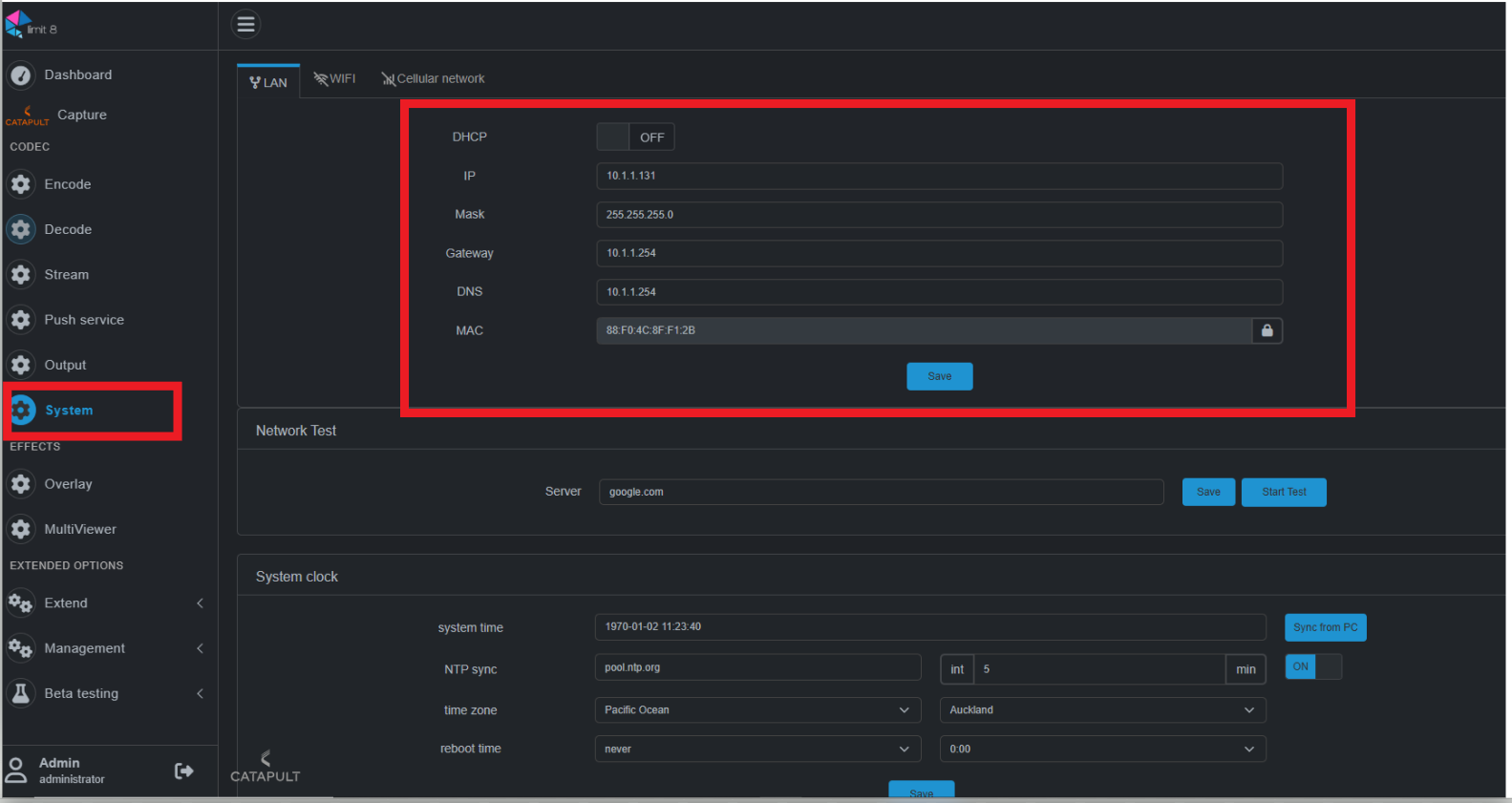

Once logged in, navigate to the System option on the left hand side of the UI. From here you can Toggle DHCP if desired or change the Static IP of the Limit 8 M4 to match your network scheme.

At this point you will lose connection to the Limit 8 M4 and will need to set your PC network adapter to an IP which matches the Limit 8 M4’s new network scheme. Once adjusted, you should be able to access the Limit 8 M4 using the new IP address implemented.

Encode Settings

Once logged into the Limit 8 M4 web user interface, select the Encode option on the left hand side of the UI

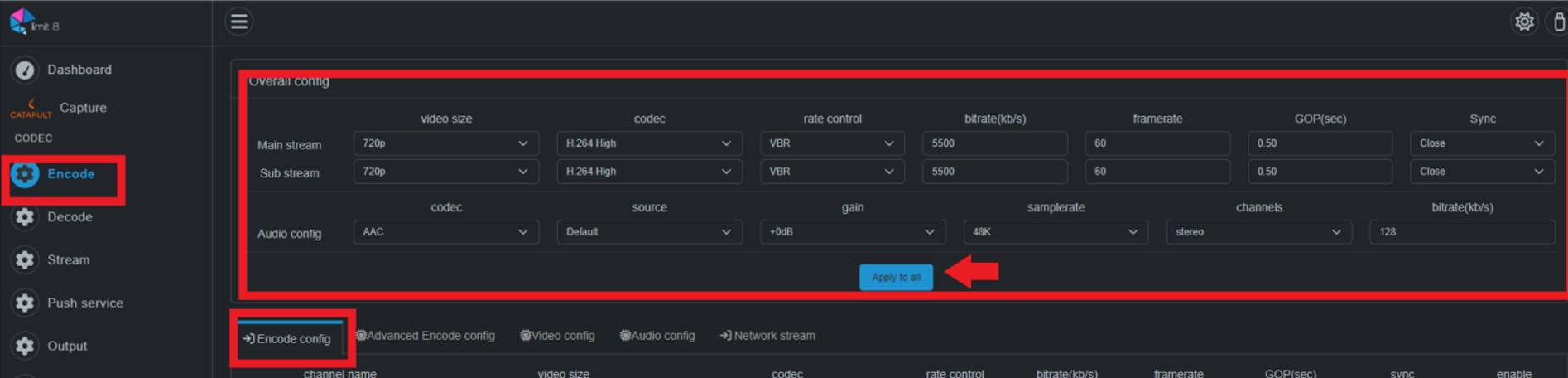

Under the Overall config section toward the top of the screen, you can adjust the settings for all encoding inputs. For both Main stream and Sub stream, select the following….

For Audio Config select the following...
Codec - AAC
Source - Default
Gain - +0dB
Samplerate - 48K
Channels - Stereo
Bitrate (kb/s) - 128
To Disable Audio select the following...
- Audio Config
  - Codec - Close
- Select Apply to all
- Hit Save at the bottom

Select "Apply to all" and you should see a message in the upper right hand corner stating "Config saved successfully"
Scroll to the bottom of the Encode Page and toggle the "Test Loop" to OFF and the "Multi-Viewer" to ON
Select "Save" and you should see a message in the upper right hand corner stating "Config saved successfully".

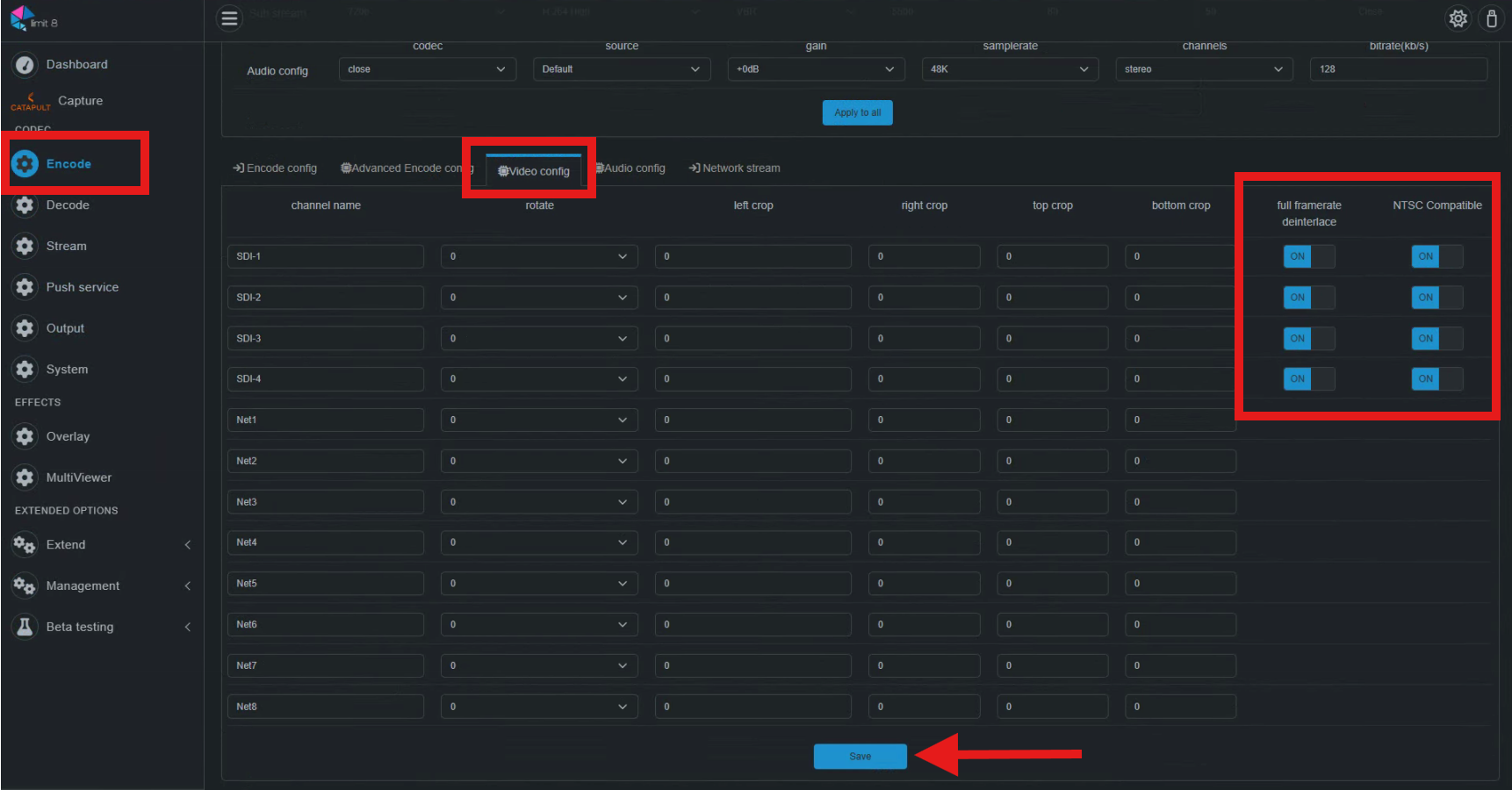

Select the "Video Config" tab in the center of the Encode Page
Under Full framerate deinterlace, toggle the setting to ON for all SDI channels
Under NTSC Compatible , toggle the setting to ON for all SDI channels
Select "Save" and you should see a message in the upper right hand corner stating "Config saved successfully"

Limit 8 - Video Encode.png

Decode Settings

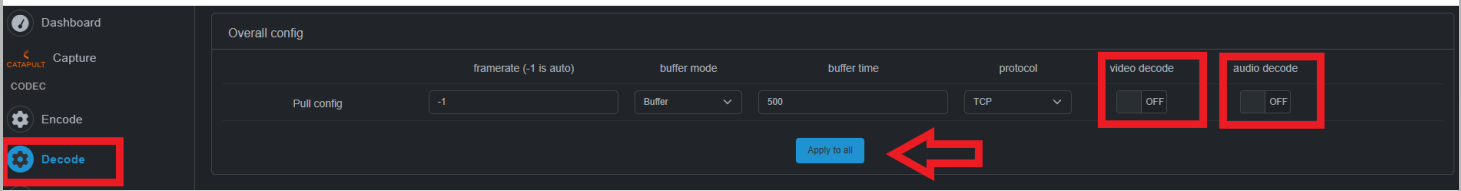

Select the Decode option on the left hand side of the UI
Toggle "Video Decode" and "Audio Decode" to OFF
Select "Apply to all" and you should see a message in the upper right hand corner stating "Config saved successfully"

Stream Settings

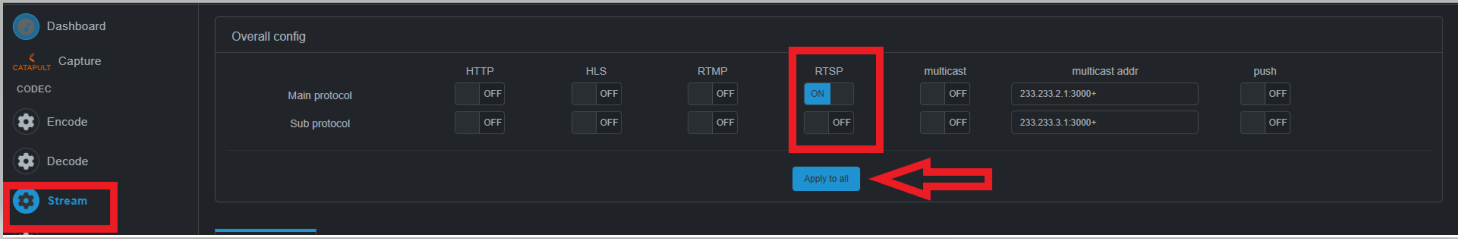

Select the Stream option on the left hand side of the UI
Under the Overall config section toward the top of the screen, all Protocols should be toggled to OFF beside RTSP for Main Protocol
Select "Apply to all" and you should see a message in the upper right hand corner stating "Config saved successfully"

Push Service Settings

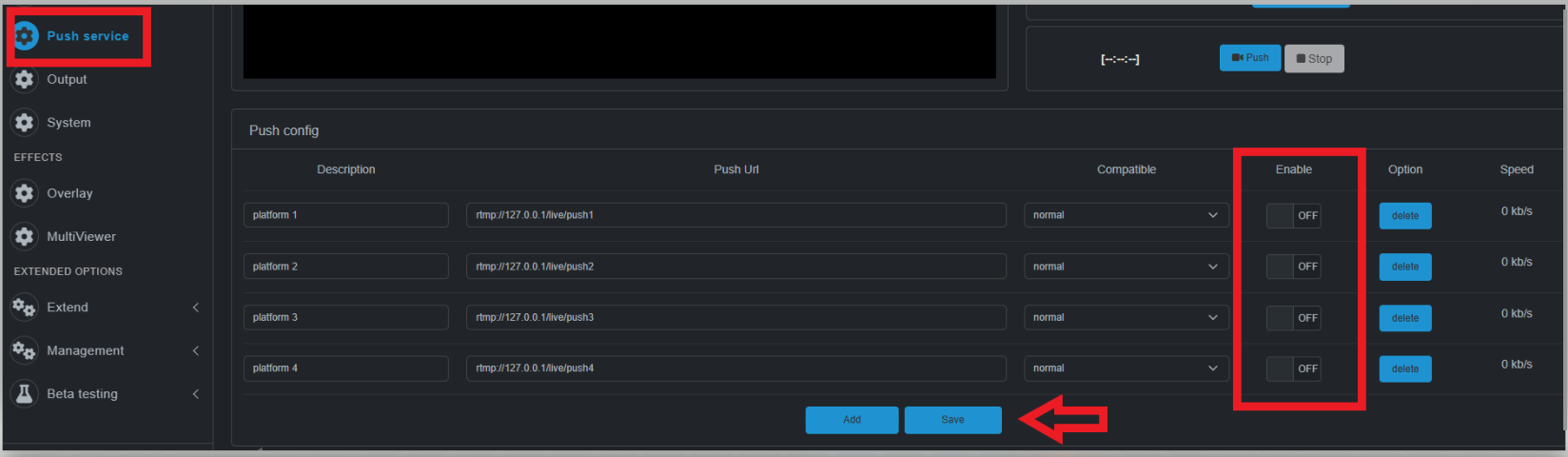

Select the Push service option on the left hand side of the UI
Under the push config section, toggle all platforms to OFF
Select "Save" and you should see a message in the upper right hand corner stating "Config saved successfully"

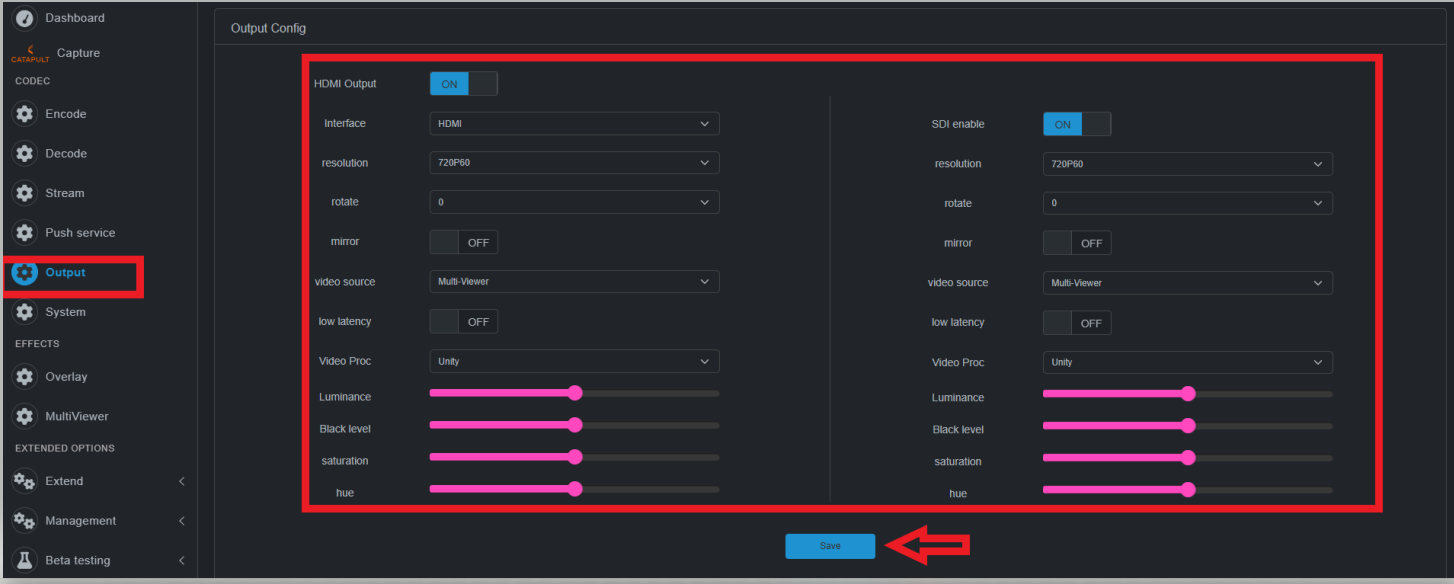

Output Settings

Select "Save" and you should see a message in the upper right hand corner stating "Config saved successfully"

Multi-Viewer Settings

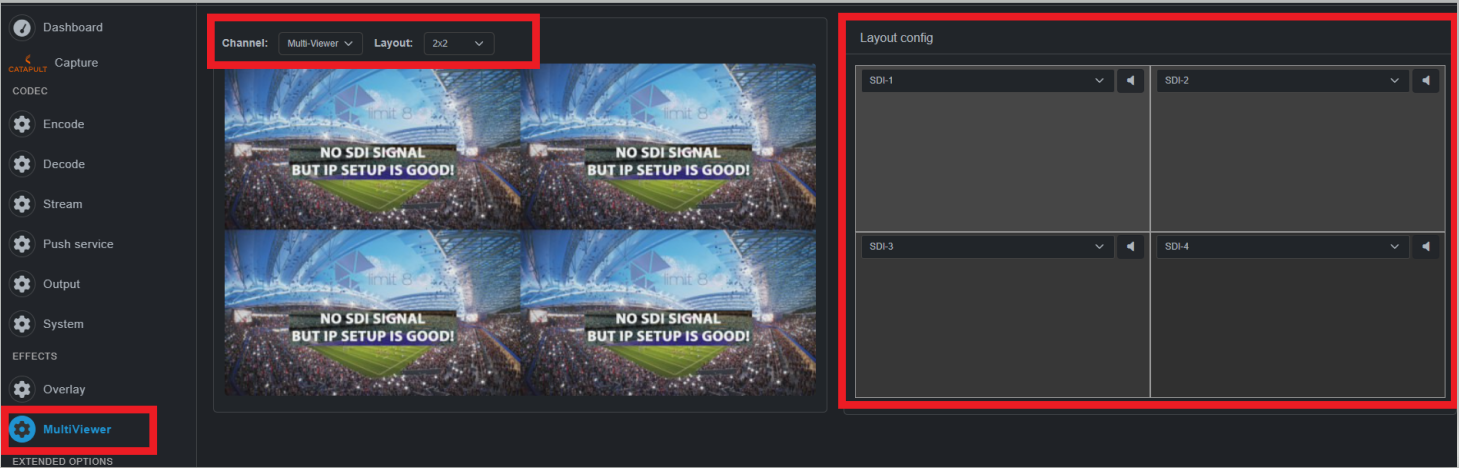

Select the MultiViewer option on the left hand side of the UI
For channel, select Multi-Viewer from the dropdown menu
For layout, select 2x2 from the dropdown menu
For layout config, select SDI-1, SDI-2, SDI-3 and SDI-4 in the 4 available video windows. Order from SDI-1 starting at the top left

***Power Cycle the Limit 8 M4 Encoder, log back in and confirm all settings outlined in this document are accurate***
